Ditec NEOS800G Sliding Gate Opener

Energy-Efficient Automation for Residential & Light Commercial Sliding Gates

ENQUIRE NOW

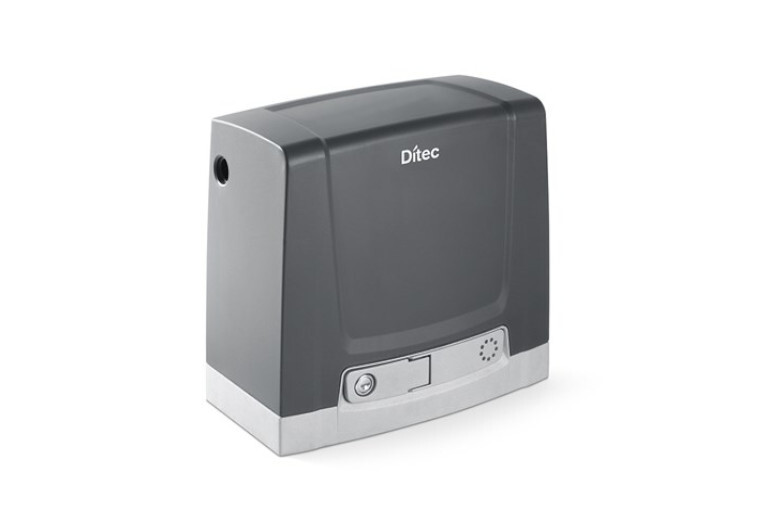

Ditec NEOS800G Sliding Gate Opener

High-Performance Automation for Residential & Commercial Sliding Gates

The Ditec NEOS800G is a powerful and energy-efficient sliding gate operator designed for residential and commercial applications. Suitable for sliding gates weighing up to 800kg, it delivers smooth, reliable operation and is built to withstand intensive daily use and harsh weather conditions.

Featuring the advanced CS12MG control panel with an integrated LCD display and a built-in 433MHz/868MHz dual-frequency radio receiver, the NEOS800G offers quick installation, simple programming, and dependable long-term performance.

Key Features

Suitable for sliding gates up to 800kg
Ideal for residential and commercial applications
Integrated CS12MG control board with LCD display
Built-in 433MHz & 868MHz dual-frequency radio receiver
Quick installation with simple two-step self-learning setup
Heavy-duty one-piece die-cast aluminium construction
Ultra-low standby power consumption of less than 0.5W
Reliable performance in demanding weather conditions
Complies with current European safety and energy efficiency standards

Energy Efficient Performance

The NEOS800G has been designed with energy efficiency in mind, consuming less than 0.5W in standby mode. This helps reduce ongoing power consumption while meeting the latest European Ecodesign requirements for standby energy use.

Built for Strength & Reliability

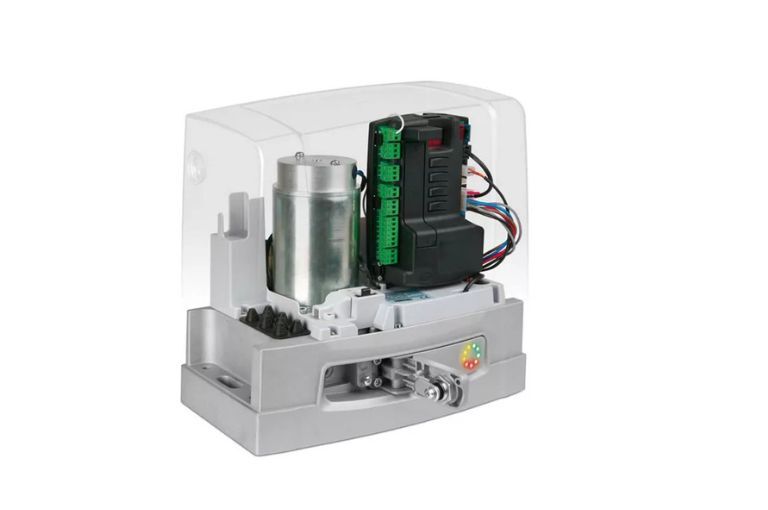

Designed for demanding environments, the NEOS800G features a robust one-piece die-cast aluminium base that provides exceptional strength and durability.

Additional reliability features include:

High-quality self-levelling grease for continuous gearbox lubrication
Temperature compensation (NIO – No Ice Option) that automatically adjusts motor performance during cold, icy and snowy conditions
Engineered for intensive daily operation with minimal maintenance

Easy Installation & Programming

The NEOS800G is designed to simplify installation while providing flexible setup options.

Features include:

Adjustable mounting system for precise alignment
Built-in LCD display with intuitive navigation buttons
Fast two-step self-learning programming
Three pre-configured operating modes for common residential and shared access applications
Removable memory module for backing up or transferring settings between operators
IP24D protection for enhanced electrical safety

Advanced Control System

The integrated CS12MG control panel provides accurate control of operating parameters while making installation and servicing straightforward.

Status LEDs provide instant indication of:

Normal operating status
Battery backup mode (where fitted)
Manual release status
Fault conditions
Maintenance alerts

Reliable Remote Control Performance

The supplied RCB50E dual-frequency receiver supports both 433MHz and 868MHz transmitters, helping minimise radio interference and providing reliable remote control performance in a wide range of installation environments.

European Quality & Safety

The Ditec NEOS800G is manufactured to comply with current European safety and performance standards, delivering reliable, energy-efficient, and long-lasting automation for residential and commercial sliding gates.

DOWNLOADS:

Ditec NEOS Green brochure Ditec NEOS Green technical manual Ditec NES100WSP Adjustable Base Plate technical manual
