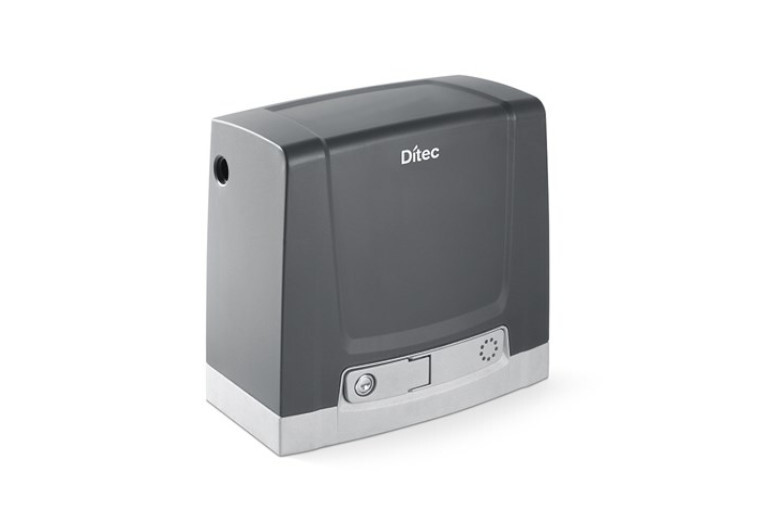

Ditec NEOS500G Sliding Gate Opener

Energy-Efficient Automation for Residential & Light Commercial Sliding Gates

Ditec NEOS500G Sliding Gate Opener

Energy-Efficient Automation for Residential & Light Commercial Sliding Gates

The Ditec NEOS500G is a high-performance sliding gate operator designed for residential and light commercial applications. Built to automate sliding gates weighing up to 500kg, it delivers reliable operation, smooth performance, and exceptional durability, even in challenging weather conditions.

Engineered for easy installation and long-term reliability, the NEOS500G features the advanced CS12MG control panel with an integrated display and a built-in 433MHz/868MHz dual-frequency radio receiver, providing straightforward programming and dependable remote control operation.

Key Features

• Suitable for sliding gates up to 500kg
• Ideal for residential and light commercial applications
• Integrated CS12MG control board with LCD display
• Built-in 433MHz & 868MHz dual-frequency radio receiver
• Quick installation with simple two-step self-learning setup
• Heavy-duty die-cast aluminium construction
• Low standby power consumption of less than 0.5W
• Reliable operation in demanding weather conditions
• Complies with current European safety and energy efficiency standards

Energy Efficient Performance

The NEOS500G is designed to minimise energy consumption with an ultra-low standby power draw of less than 0.5W, helping reduce electricity costs while meeting the latest European Ecodesign requirements.

Built for Reliability

Manufactured with a robust one-piece die-cast aluminium base, the NEOS500G is engineered for years of dependable operation.

Additional durability features include:

• High-quality self-levelling grease for continuous gearbox lubrication
• Temperature compensation (NIO – No Ice Option) that automatically adjusts motor performance during cold, icy and snowy conditions
• Designed for intensive daily use with minimal maintenance requirements

Easy Installation & Programming

The NEOS500G has been designed to simplify installation and commissioning.

Features include:

• Adjustable mounting system for accurate alignment
• Built-in display with intuitive navigation buttons
• Fast two-step self-learning programming
• Three pre-configured operating modes for common residential applications
• Removable memory module for backing up or transferring settings
• IP24D protection for enhanced electrical safety

Advanced Control System

The integrated CS12MG control panel provides precise control over operating parameters while making installation and servicing easier.

Status LEDs allow installers and users to quickly identify:

• Normal operating status
• Battery backup mode (where fitted)
• Manual release status
• Fault indications
• Maintenance alerts

Reliable Remote Control Performance

Supplied with the RCB50E dual-frequency receiver, the NEOS500G supports both 433MHz and 868MHz transmitters, helping minimise radio interference and ensuring reliable remote operation.

European Quality & Safety

The Ditec NEOS500G is designed and manufactured to comply with current European safety and performance standards, providing efficient, reliable, and long-lasting sliding gate automation for homes and light commercial properties.

This version is better suited to New Zealand buyers, avoids mentioning products they aren't purchasing, and includes keywords such as 500kg sliding gate opener, automatic sliding gate motor, residential gate automation, and light commercial gate opener, which can help with SEO.

---

DOWNLOADS:

 Ditec NEOS Green brochure  Ditec NEOS Green technical manual  Ditec NES100WSP adjustable base technical manual
