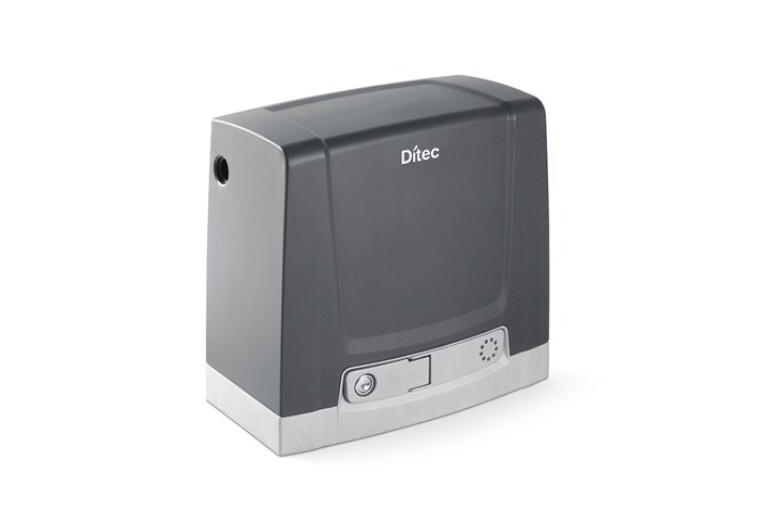

Ditec NEOS1000G Sliding Gate Opener

Energy-Efficient Automation for Residential & Light Commercial Sliding Gates

ENQUIRE NOW

Ditec NEOS1000G Sliding Gate Opener

Heavy-Duty Automation for Residential, Commercial & Industrial Sliding Gates

The Ditec NEOS1000G is a robust, high-performance sliding gate operator designed for demanding residential, commercial, and industrial applications. Suitable for sliding gates weighing up to 1000kg, it delivers powerful, reliable automation for sites requiring consistent performance under intensive daily use and challenging weather conditions.

Equipped with the advanced CS12MG control panel, integrated LCD display, and a built-in 433MHz/868MHz dual-frequency radio receiver, the NEOS1000G offers fast installation, intuitive programming, and dependable long-term operation.

Key Features

Suitable for sliding gates up to 1000kg
Ideal for residential, commercial, and industrial applications
Integrated CS12MG control board with LCD display
Built-in 433MHz & 868MHz dual-frequency radio receiver
Fast installation with simple two-step self-learning programming
Heavy-duty one-piece die-cast aluminium construction
Ultra-low standby power consumption of less than 0.5W
Designed for intensive daily operation
Reliable performance in harsh weather conditions
Complies with current European safety and energy efficiency standards

Energy Efficient Performance

The NEOS1000G combines powerful gate automation with excellent energy efficiency, consuming less than 0.5W in standby mode. This reduces ongoing electricity consumption while complying with the latest European Ecodesign requirements for standby power.

Built for Heavy-Duty Reliability

Designed for high-use environments, the NEOS1000G features a one-piece die-cast aluminium base that delivers exceptional strength, durability, and long service life.

Additional reliability features include:

High-quality self-levelling grease for continuous gearbox lubrication
Temperature compensation (NIO – No Ice Option) that automatically adjusts motor performance during cold, icy, and snowy conditions
Engineered for intensive daily use with minimal maintenance requirements

Simple Installation & Programming

The NEOS1000G has been designed to reduce installation time while providing maximum flexibility.

Features include:

Adjustable mounting system for accurate positioning
Built-in LCD display with intuitive navigation controls
Quick two-step self-learning programming
Three pre-configured operating modes for common installation types
Removable memory module for backing up or transferring programming between operators
IP24D protection for enhanced electrical safety

Advanced Control System

The integrated CS12MG control panel provides precise adjustment of operating parameters while simplifying installation and servicing.

External status LEDs provide instant indication of:

Normal operating status
Battery backup mode (where fitted)
Manual release status
Fault conditions
Maintenance alerts

Reliable Remote Control Performance

Supplied with the RCB50E dual-frequency receiver, the NEOS1000G supports both 433MHz and 868MHz transmitters, helping reduce radio interference and ensuring reliable remote operation across a wide range of installation environments.

European Quality & Safety

Manufactured to meet current European safety and performance standards, the Ditec NEOS1000G delivers dependable, energy-efficient automation for heavy residential, commercial, and industrial sliding gates, providing years of reliable service.

DOWNLOADS:

Ditec NEOS Green brochure Ditec NEOS Green technical manual Ditec NES100WSP adjustable base technical manual
